Bearings

No.NU-30

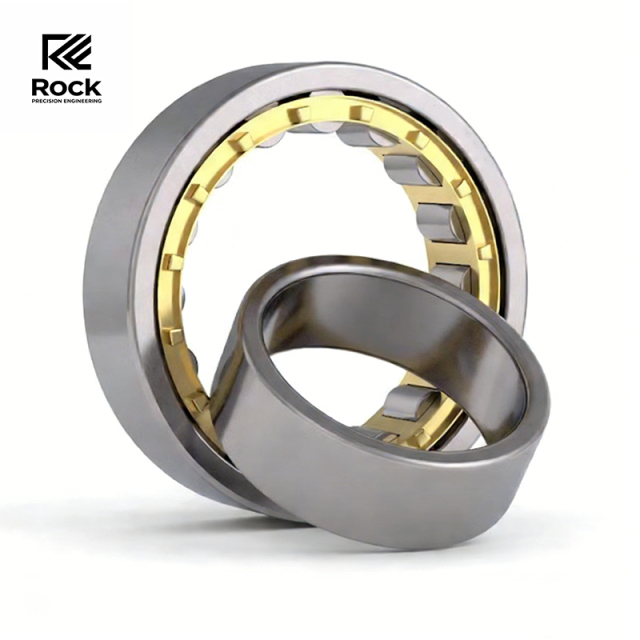

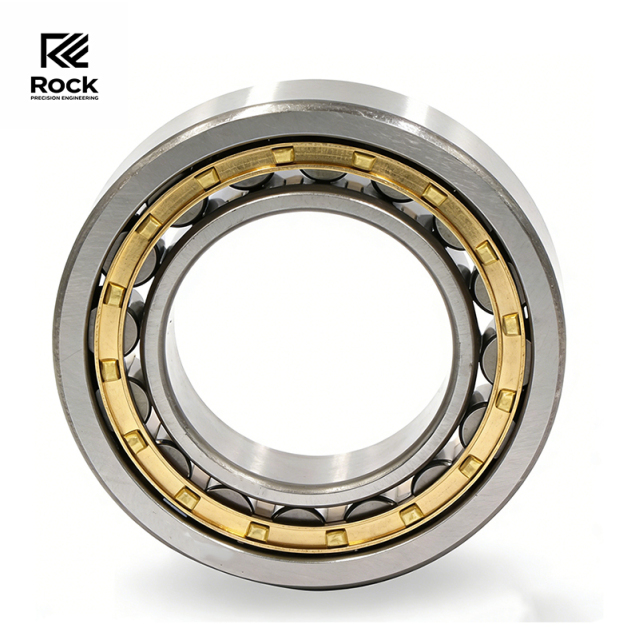

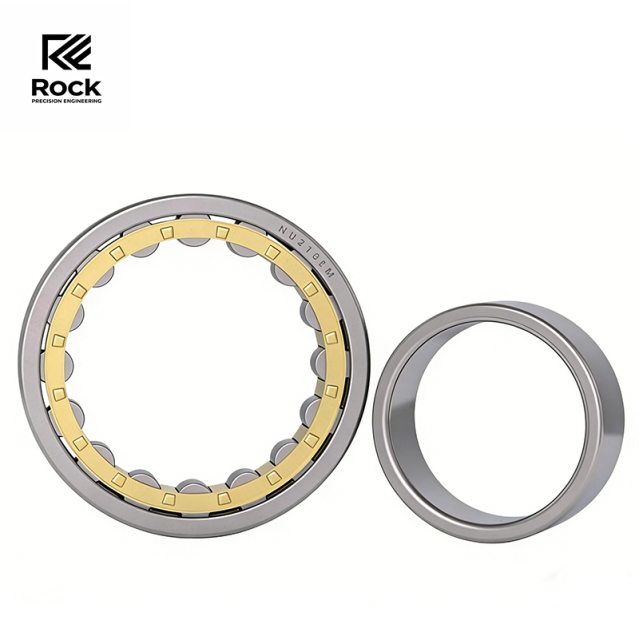

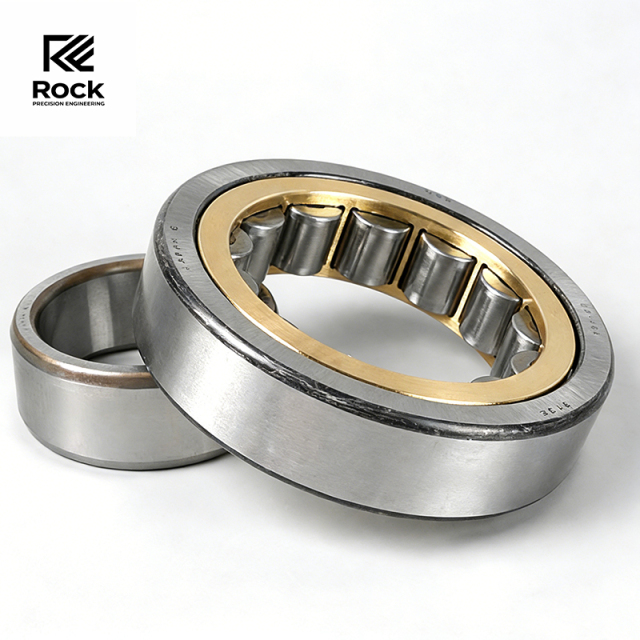

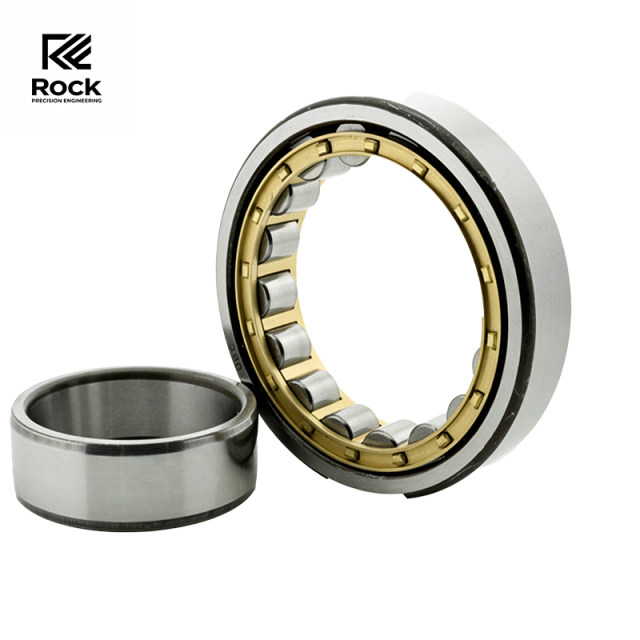

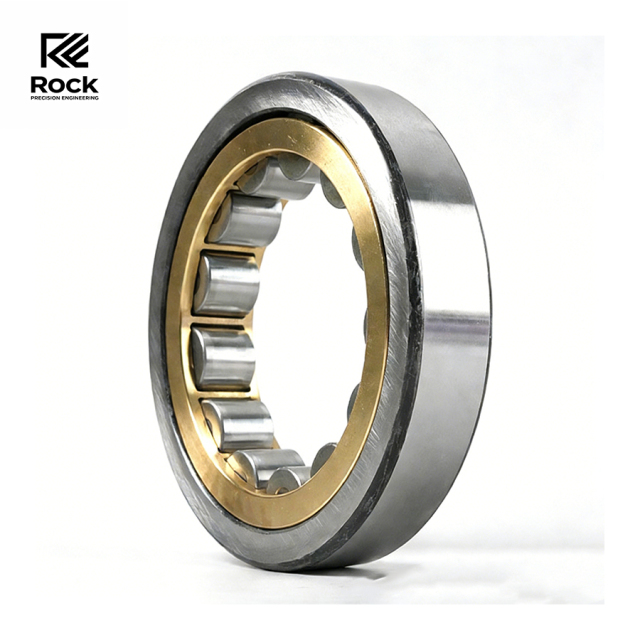

高精度NU系列单列圆柱滚子轴承——卓越的径向载荷能力与带轴向浮动的优异高速性能
  • Bearings,Rock Precision Engineering Co., Ltd.,Bearings
  • Bearings,Rock Precision Engineering Co., Ltd.,Bearings
  • Bearings,Rock Precision Engineering Co., Ltd.,Bearings
  • Bearings,Rock Precision Engineering Co., Ltd.,Bearings
  • Bearings,Rock Precision Engineering Co., Ltd.,Bearings
  • NU-30 Series,Rock Precision Engineering Co., Ltd.,Bearings

描述

Bearing Designation Bore Diameter Outside Diameter Width Dynamic Load Rating Static Load Rating Limiting Speed
(mm) (mm) (mm) (kN) (kN) (Grease) (r/min)
NU305 25 62 17 38.5 38 10000
NU306 30 72 19 49.2 49 9000
NU307 35 80 21 59 59 8000
NU308 40 90 23 70 70 7500
NU309 45 100 25 82.5 82 6700
NU310 50 110 27 92.8 92.5 6300
NU311 55 120 29 108 108 5600
NU312 60 130 31 122 122 5300
NU313 65 140 33 135 135 5000
NU314 70 150 35 148 148 4800
NU315 75 160 37 162 162 4500
NU316 80 170 39 175 175 4300
NU317 85 180 41 190 190 4000
NU318 90 190 43 205 205 3800
NU319 95 200 45 222 222 3600
NU320 100 215 47 240 240 3400
NU321 105 225 49 258 258 3200
NU322 110 240 50 275 275 3000
NU324 120 260 55 305 305 2800
NU326 130 280 58 340 340 2600
NU328 140 300 62 375 375 2400
NU330 150 320 65 415 415 2200
NU332 160 340 68 455 455 2000
NU334 170 360 72 495 495 1900
NU336 180 380 75 540 540 1800
NU338 190 400 78 585 585 1700
NU340 200 420 80 630 630 1600
NU344 220 460 88 720 720 1400
NU348 240 500 95 815 815 1300
NU352 260 540 102 915 915 1200
NU356 280 580 108 1020 1020 1100
NU360 300 620 115 1125 1125 950
NU364 320 620 118 980 1250 850
